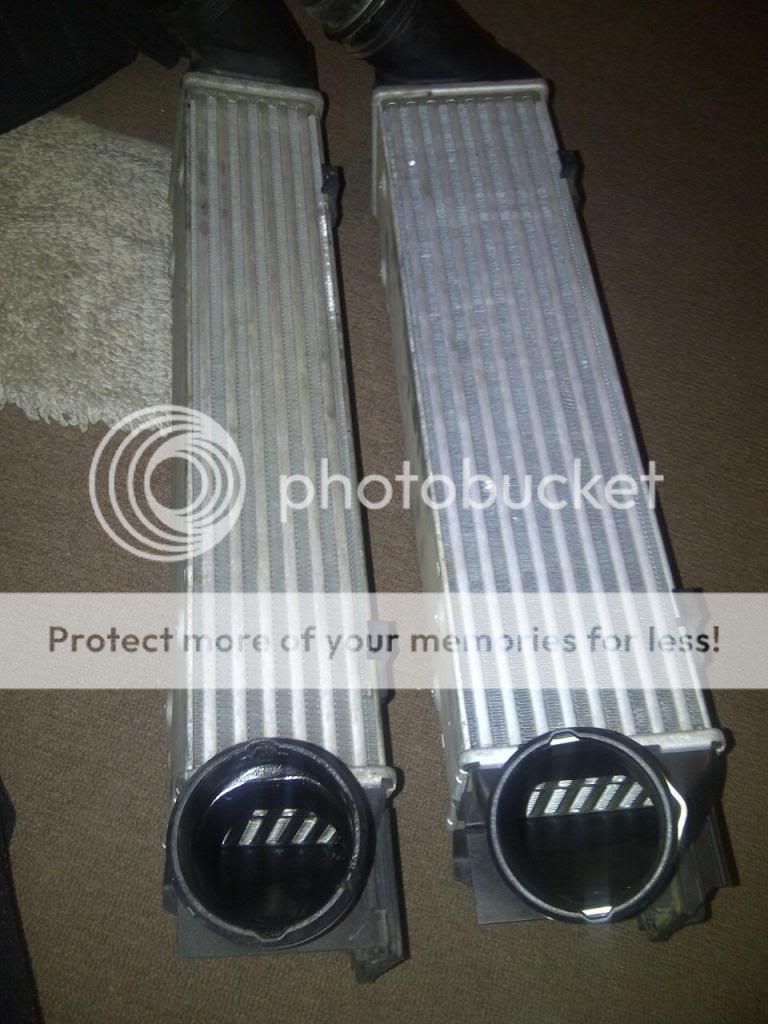

Just for interest sake here is the intercooler from an N54 335i compared to the 330d one. Same size and design only 2 more rows.



[///Maniac]

I spotted a c class intercooler on the gum. Don't know if you guy's might be interested in that one. :fencelook:

Sent from my GT-I9500 using Tapatalk



[moranor@axis]

considering the n54 IC runs out of efficiency when the car is tuned and this build is looking at more power I am convinced the 330D IC will be too small but it is better than nothing

lets see what Crashes reading comes back with



[BillyBob]

Well, @ 9psi the volumetric flow rate from the supercharger is 758cfm. cubic feet per minute. (758 litres an hour).

Amount: 1 cubic foot per minute (cu ft/min) of flow rate
Equals: 28.32 Liters per minute (L/min) in flow rate

thus:

Amount : 758 cubic feet per minute (cu ft/min of flow rate)
Equals : 21 464.17 Liters per minute (L/min / flow rate)
Equals : 1 287 850.2 Liters per hour (L/hr / flow rate)

---

+1 to what Gizmo said.

Going U-flow right off the bat is going to make life a lot easier... considering that the Supercharger and your intake manifold both sit at the same end of the engine bay, your piping for a cross-flow intercooler (like the 330d / 335i units) is going to be unnecessarily intricate and costly.

A tight 180° bend at the opposite end of the cooler is going to cause a pressure drop, which will wind up getting blamed on the cooler, which then gets upgraded, only to still have a pressure drop.

As Gizmo has said, speak to Universal coolers, or perhaps have a look at this cooler - http://dropspec.co.za/store/index.php?route=product/product&product_id=454 - it's got the right design and looks compact enough to mount, provided you can wangle enough clearance on the thickness side of things.

---



[gavsadler]

Don't dismiss the Mr Turbo intercoolers too quickly, I know plenty of cars which have them fitted, and are making good power.

My Ute has a 450x300x76 fitted, and it seems to work well. The maximum intake temperature I recorded when testing was 42deg. In comparison, the stock intercoolers leave you with an intake temp of 55deg+.

+1 in keeping the piping simple. a G or U flow cooler will be the best bet at the end of the day.

Coming along nicely though :thumbs:



[Gizmo]

If you compare a fewer long rows intercooler vs many short rows intercooler which both have the same frontal area, heat transfer area and efficiency, you will find the many short rows give you a lower pressure loss.
