BeemerFanatic
Events Organiser
That’s not a garage. It’s a 1 bed apartment. Looking good Llew. Cant wait to see the end result
MoouSlowly edging towards completion.
Lights and plugs are in and the ceiling is done, but the walls are just primered. Working on final colour which should be here tomorrow along with drainage and paving of the front. I've already completed the paving around the back and in some of the front, but had to wait for various things to be completed and for the guys to clear everything from the build so we could essentially pave where all the material and rubble was sitting. We had some torrential downpours earlier and nothing flooded so that's a good sign, but drainage is a must.
You can spot the wall colour tester in some of the pics on the right of the entrance.
There were some delays on the door manufacturing and hopefully that also won't have to wait. Touch and go for this week, but at this point I think I've gotten quite far for this year. The floor is going to wait until next year since we have a contractor shutdown from Thursday in the estate and I don't really want to rush it. To be honest I am still not 100% between the epoxy and tiles.
the 16 downlighters work in terms of intensity... 6500K colour temp works too. They are split into the 'main' 12 which cover the cars and another 4 which are at the workspace. There's provision for additional lights (either strips or hex later...) inside and the outside lights are on another circuit.
![]()
![]()
![]()
![]()
![]()
Love the doorsSo I wanted to have the space 'closed' at least by the end of the year. It was touch and go but this arrived yesterday...
Nothing more happening this year except for some tidying up inside (and moving some things in). I can only clean it in a couple of days.
Will be paving next year. The back section is already done but I wanted to have a look at it at this sort of stage to make a final call.
![]()
![]()
Really love those wheels on the m5.Brief update: There is some minor stuff to finish off like the cutting of pavers, cleaning, final fitment for cameras etc. but it is pretty much done. The only thing outstanding is the floor (tiles/epoxy/rubber debate), but I will live with the concrete for a while before deciding. It's a large outlay that you can't easily change afterwards like some of the other items.
I thought about doing fancier pavers. The ones I initially wanted were working out at over R275K! But after looking at many houses on my morning runs, looking at how they weather and age as well as how it would be used, simplicity won out in the end... even if it isn't the fanciest. They are ordinary concrete cottage pavers from Infraset.
There is a steep angle from the driveway and with our recent rains, I invested a lot into drainage across the entire front of the house. The garage was no exception.
![]()
The charcoal pavers match up reasonably well with the cheap black bevel bricks that I have around the rest of the house
![]()
Of course I can now look after my cars properly again and fill the empty slot (this year sometime I hope LOL)
![]()
Many of the fanatics reached out to me here and in other places: A summary of things I learned and things that were done:
Electrical: The cost for accomodating redundancy is VERY low when you are building. Laying an extra 50m of conduit and having your electrician pull wires to blanks is much easier and cheaper than realising afterwards that you need to chase into walls or stuff on the surface. Similarly use outside weatherproof boxes strategically as sources of network, power and comms 'out of' the house. this saves you having to let other contractors into your house to find the 'path of least resistance' that will irriate you into the future since they decide that "oh this is normal" and drill a hole through an extremely visible portion of your house because it saves them 15 mins of using their brains... I fortunatley have good SPs except for fibre. Metrofibre and Vodacom send people that wouldn't qualify to unblock an open drain with their hands.... let alone deal with fibre issues.
There are many tools that come with schuko plugs and none of them are 'real' grounded schuko. I made sure to have this available on all the walls and there is a fairly cost effective Owesto 'strip' that can be configured with a mix of 2 pins, shucko and 3 pins.
I configured 4 zones for the lighting: outside, inside car space, inside work space at the back and outside floods for the back and side. this helps manage power because even though we have solar, with a few days of continuous rain and Eskom shenanigans, you still do need to watch your usage, especially into the night.
I have made provision for future lighting upgrades for panels and hex lights - there are blind boxes to accommodate feature lighting on each side and wiring run to the slab boxes for future use as well. I do feel the downlighters will be just fine for some time to come - something I was very worried about
Quality of Life features
Air - There's a spot on the side to accomodate an air compressor and in future a permanently mounted pressure washer. I went through the exercise of looking at chasing air into the walls or surface mounting it across the whole garage. For this kind of space, best for me was to allow for a regulator to sit on the inside, plumbed through the wall with just a long hose. I don't use it often enough that I would need the convenience of having it on every wall. Ditto for vacuum - my big "R2D2" karcher can reach all the cars without me having to unplug and replug so it didn't make too much sense to leave room for vacuum ports on the walls.
Water
You may spot the lack of a water source inside the garage. Just inside the white door is a double steel sink to prep chemicals, wash up etc. and there is storage space behind that for my detailing supplies. The idea was to keep the inside fairly empty. If I need water inside I have access via the sliding door or glass door at the back which both have taps and drains just outside.
The reason for this is more of a personal one: I had SO MANY GUYS cut into water pipes during the renovation that I don't want to take the chance with all my cars, equipment and electrical stuff sitting inside. Water can be more trouble than it's worth and it didn't make sense with three sources (front rear and side) with a double sink and two outside drains.
If you don't have a similar set up, a double sink at the bank will help alot and again isn't an expensive thing to add while you're building.
Drainage
There is a fairly long drain with a trap embedded into the concrete floor. It's only a 50mm pipe - not much more needed for this kind of application and there is some attenuation within the drain itself. This is a must for cleaning the garage as well as bringing cars in to dry. I can imagine washing a car in here if push came to shove, but that's not really the intention with it (again with the electrical stuff not far away). The floor is very thick so this could be done with the right angle to get the water out. You may have to accomodate for a section to be thicker if you're not planning to do a uniformly thick layer.
Outside drainage is another thing to factor in - there is a pad for washing but also drains in front and to the side with 110mm pipes and attenuation drains too. The last thing you want (especially with our recent unpredictable weather) is to end up with floods or excessive erosion which can impact the building/structure.
Door
The door looks great... but it is heavy AF because of the kind of glass used and has a Digi 1000 Newton motor. It also needs heavier duty springs, more bracing etc. I will report back on keeping a black glossy thing clean... but you can imagine. I have not regretted it though, just that you need to know what you're in for and you are paying the price for what is purely an aesthetic thing.
Network/Connectivity
I have a Ubiquiti unifi setup, but this applies to anyone I guess. There are many reasons to run ethernet each wall as well as have an access point inside. I have Five runs into the garage: Two to points on the wall (it goes to a patch panel in the rack so can be for anything), 2 to cameras (inside and for the driveway) and one to the AP
Architectural features:
I have new appreciation for the engineering that goes into some of this stuff. There are some elements that you look at when talking to the architect and think: yeah those are simple and would look great. The one such item was the concrete eyebrow across the front of the house... BEFORE you sign off on plans and submit, make sure you have an idea of what it will cost to bring all the 'non-standard' things to life. In my case, if the eyebrow was hanging off the roof OR it was extending into the garage as part of the ceiling it would have basically cost a fair bit less than it did to have it 'floating' with engineered steel beams as you see it now. No regrets though. in the grand scheme of the overall project, it was not material and the rest did come in on or below budget.
Last one: this side door will never get old LOL - but I do wish I'd done a stacker instead of a slider here. No regrets since this is one of the nicest features: I make my coffee in the morning and have a view of the car
![]()
Looking amazing! My brain can't compute the space in these two pics 😅
Whats the mileage on your M5? What are your intentions for her? I mean.. where do you go after an F90
What abt the Mercedes AMG GT63..it trumps the F90 in the looks department..really a special looking hulk of a car with class to boot. It's almost equal to the M8 in terms of performance depending on which youtube video you get good hold of. 52k mileage leaves you with alot of time to decide.Just past 52000km. Honestly, I don't think I'll buy the new m5 (I know I said this about the F90 as well but I REALLY can't see it happening when I could realistically buy a 'real' supercar which is the next thing I want). I already extended the plan to May 2025 and will likely do so again to 2026. I don't see the need to add power to it and the mods that I wanted to do (suspension and exhaust) I've done via M Performance parts.

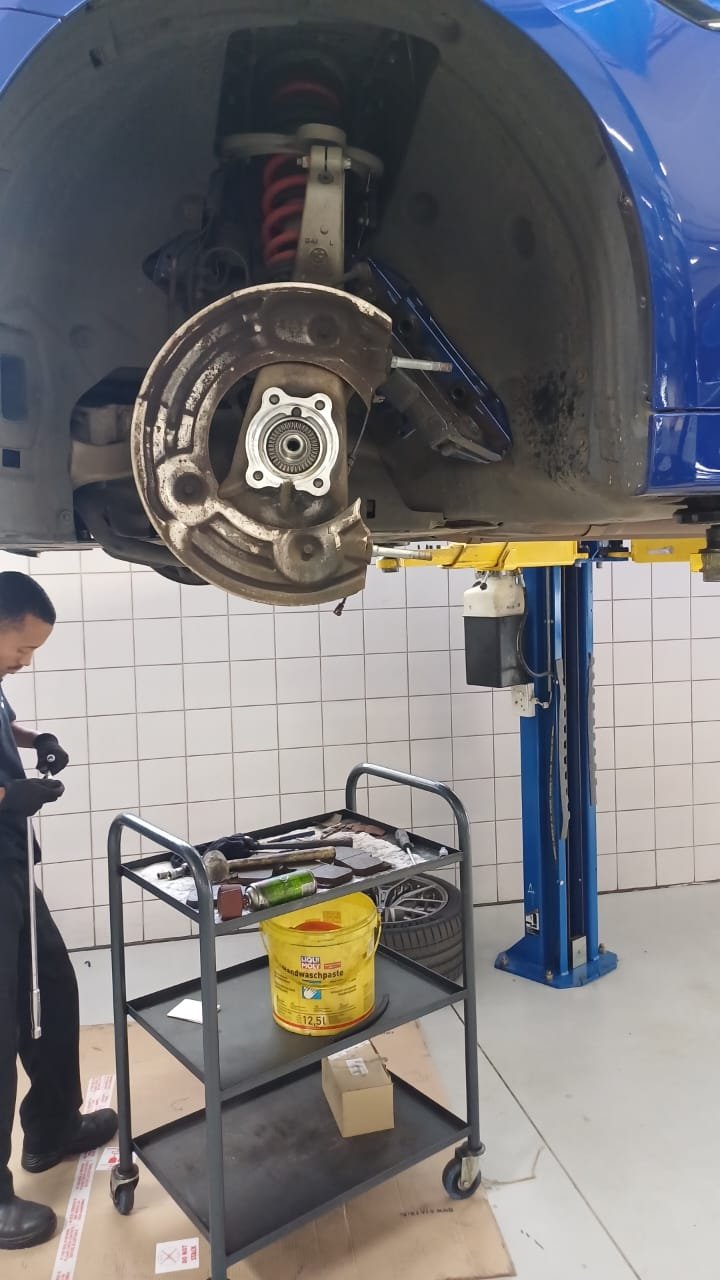

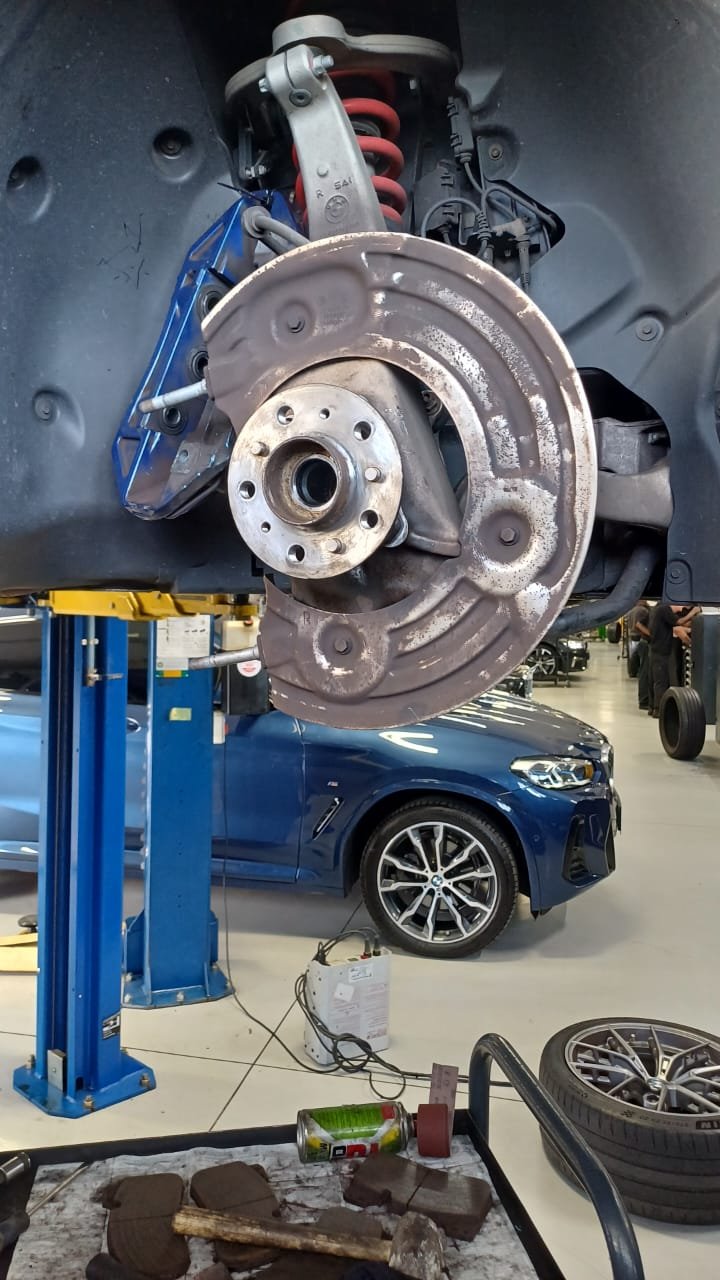

The plan is to keep the F90 and do a few things (as I did with the F10) to keep things interesting. One of these will be coming soon in April (oil service time) when I plan to do the LCI tail light retrofit (this is an official BMW retrofit kit).
I thought about buying an LCI Comp but most of them are missing all the options I am looking for and they come with a dash that I don't like as much as the one in my 2019. eg: I saw one today that ticked many boxes but had no B&W or soft-close doors for instance. I also prefer the front light design on the pre-LCI. If I think about one thing to change it would be the tails, just for the refreshed darker & 3D look. I know these are mods you never get your money back on but then I am also not spending +1.2M to buy the same car over again
Unfortunately, the question of what next is a very difficult one to answer. In terms of sedans/family vehicles the M5 is the one that feels like it was designed for me. I felt the same with the F10 as well. To some degree this question also applies to my Alfa as I can't afford a 458 Speciale or GT2 RS. The "what next" for me requires the powerball or euromillions right now I'm afraid.
What abt the Mercedes AMG GT63..it trumps the F90 in the looks department..really a special looking hulk of a car with class to boot. It's almost equal to the M8 in terms of performance depending on which youtube video you get good hold of. 52k mileage leaves you with alot of time to decide.
Do it, we have awesome driving roads.Anyway I am off to Cape Town next week - hopefully I won't be too tempted to stay indefinitely![]()
